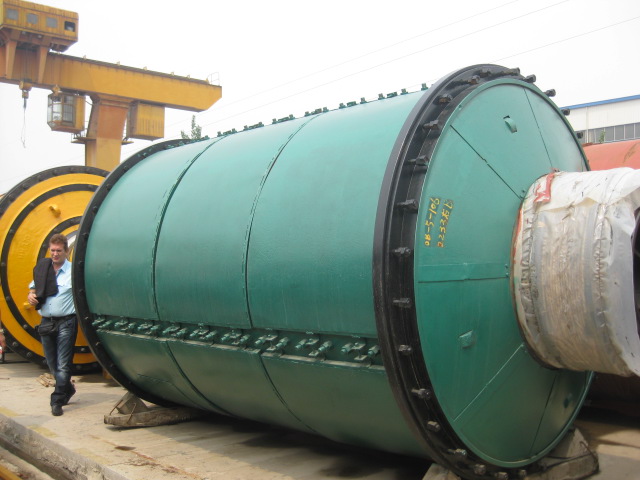

Coal Mill

Coal mill is the main equipment in coal powder preparation and it’s mainly used for powder milling various hardness coals. It’s also suitable for coal and ore milling system in cement, metallurgy, chemical industry and other industries. This product has double-decked sound-insulated equipment.

Model	Cylinder volume (m³)	Cylinder Rotation speed (r/min)	Max Ball loading (t)	Capacity (t/h)	Motor Power (kw)	Dimensions (L×W×H) (mm)	Weight (t)
Ø1.7×2.5m	5.7	24.5	7.5	3	95	7026×3300×3294	25
Ø 2.2×2.6m	9.9	22	10	4	180	7070×4380×3400	38
Ø 2.2×3.3m	12.5	22	14	6	200	7780×4380×3400	40.6
Ø 2.5×3.2m	15.7	20.31	18	8	280	9720×5457×4262	50.1
Ø 2.5×3.9m	19.1	20.31	22	10	320	10240×5457×4262	56
Ø 2.9×3.5m	23.12	19.34	26	12	380	10020×6353×4844	69.2
Ø 2.9×4.1m	27.08	19.34	30	14	475	10650×6353×4844	73.5
Ø 29×47m	31.04	19.34	35	16	560	11130×6353×4844	77.8
Ø 3.2×4.7m	37.8	18.42	44	20	680	12860×7030×5400	114.2
Ø 3.2×5.8m	46.65	18.42	55	25	800	14140×7030×5400	121.3
Ø 35×60m	57.73	17.57	59	30	1000	15530×7300×5694	143
Ø 3.5×7m	67.35	17.57	69	35	1120	17080×7300×5694	150.8
Ø 3.8×6.5m	79.8	17	75	40	1250	16030×7850×5900	196.9
Ø 3.8×7.2m	88.2	17	85	45	1400	16700×7850×5900	203.4
Ø 3.8×7.9m	96.4	17	95	50	1600	17430×7950×5900	210.9
Ø 3.8×8.6m	104.6	17	105	55	1800	18130×7950×5900	226.3
