Spiral Classifier

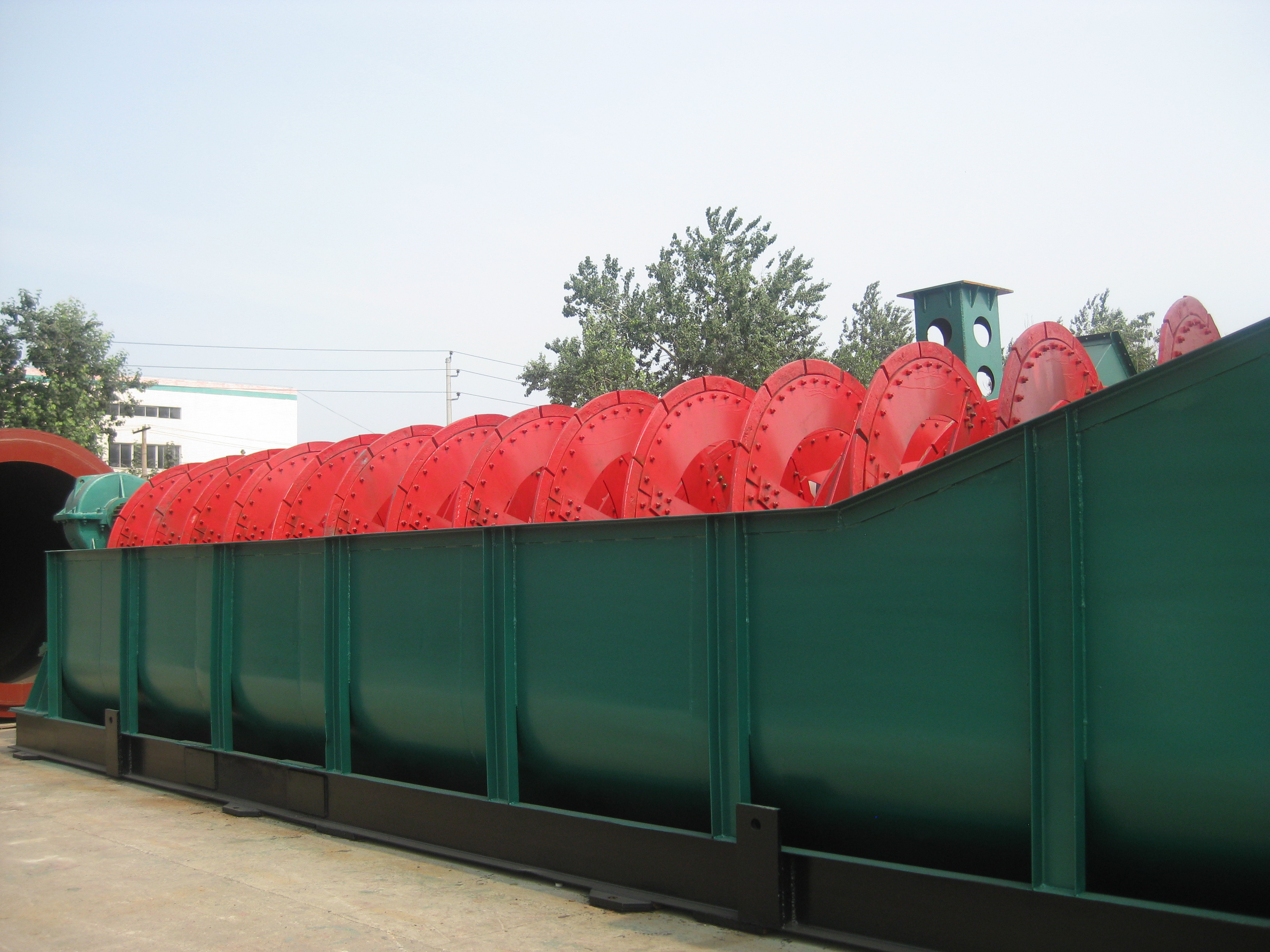

This machine is the main equipment in mineral dressing plants, for grading ore pulp size; it is also used for desliming, dewatering and other works in sand washing. It’s divided to single spiral and double spirals; according the difference of spiral’s depth in overflow surface, it’s divided to high weir type and sinking type.

Type	Model	Spiral Diameter (mm)	Water trough length (mm)	Spiral rotation speed (r/min)	Capacity (t/d)		Motor Power (kw)		Weight (t)
					Sand return	Overflow	Drive	Hoist
High weir type	FG7.5	750	5274	5.0-8.0	340-570	65	3	Manual	2.7
	FG10	1000	6500	5.0-8.0	675-1080	110	5.5	Manual	4.43
	FG12	1200	6500	5.0-8.0	1170-1870	155	5.5	1.5	8.7
	FG15	1500	8436	4.0-6.0	1830-2740	235	7.5	2.2	12.5
	FG20	2000	8400	4.0-6.0	3240-5400	400	11	2.8	20.5
	FG24	2400	9210	3.6	4650-7450	580	15	3	25.6
	2FG12	1200	6500	5.0-8.0	2340-5400	310	5.5×2	1.5×2	14
	2FG15	1500	8436	4-6.0	3660-5480	470	7.5×2	1.5×2	21.1
	2FG20	2000	8400	3.0-5.5	7780-11880	800	11×2	2.8×2	36.5
	2FG24	2400	9210	3.6	13600	1160	15×2	3×2	46.8
	2FG30	3000	12500	2.0-3.2	14600-23400	1785	18.5×2	4×2	73
Sinking type	FC15	1500	10500	4.0-6.0	1830-2740	185	7.5	1.5	16.8
	FC20	2000	12900	2.0-5.5	3895-5940	320	15	2.8	29.1
	FC24	2400	14200	2.5-4.0	4650-7450	455	18.5	4	41
	2FC15	1500	10500	4.0-6.0	2280-5480	370	7.5×2	1.5×2	30.7
	2FC20	2000	12900	3.0-5.5	6480-11800	640	11×2	3×2	50
	2FC24	2400	14200	3.67	9300-14900	910	18.5×2	3×2	67.9
