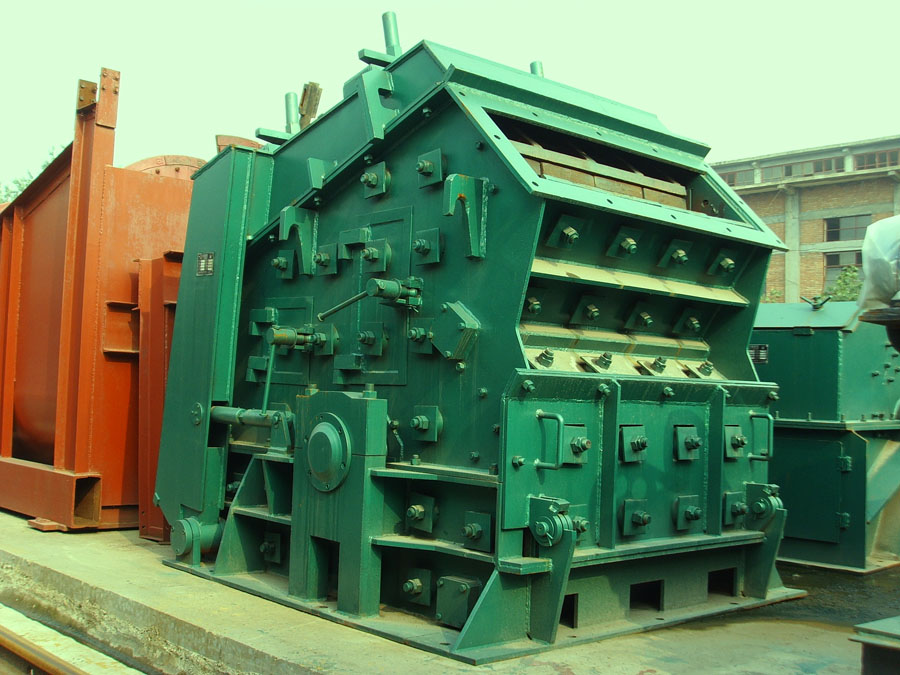

Impact crusher is used in mineral dressing, chemical industry, cement, building materials, fire-proof materials, ceramics, glass and other industries, for crushing medium hardness ore, such as limestone, quicklime, chamotte, slag, calcium salt, clay mine, building materials, coke, coal and other materials which the compressive strength does not surpass 150MPa and the moisture is less than 10%.
| Model |
Rotor Diameter (mm) |
Rotor Width (mm) |
Max feeding size (mm) |
Discharging size (mm) |
Motor Power (kw) |
Capacity (t/h) |
Weight (kg) |
| PF0504 |
500 |
400 |
<100 |
<20 |
7.5 |
4-8 |
1800 |
| PF1007 |
1000 |
700 |
<200 |
<30 |
37 |
15-30 |
6000 |
| PF1010 |
1000 |
1050 |
<300 |
<50 |
75 |
40-60 |
12300 |
| PF1210 |
1250 |
1000 |
<350 |
<50 |
95 |
50-90 |
15813 |
| PF1212 |
1250 |
1250 |
<350 |
<50 |
130 |
60-110 |
18579 |
| PF1214 |
1250 |
1400 |
<300 |
<60 |
180 |
80-145 |
19578 |
| PF1315 |
1320 |
1500 |
<300 |
<40 |
220 |
100-180 |
20820 |
| PF1320 |
1320 |
2000 |
<300 |
<60 |
300 |
280-350 |
24500 |
