Cement Equipment center

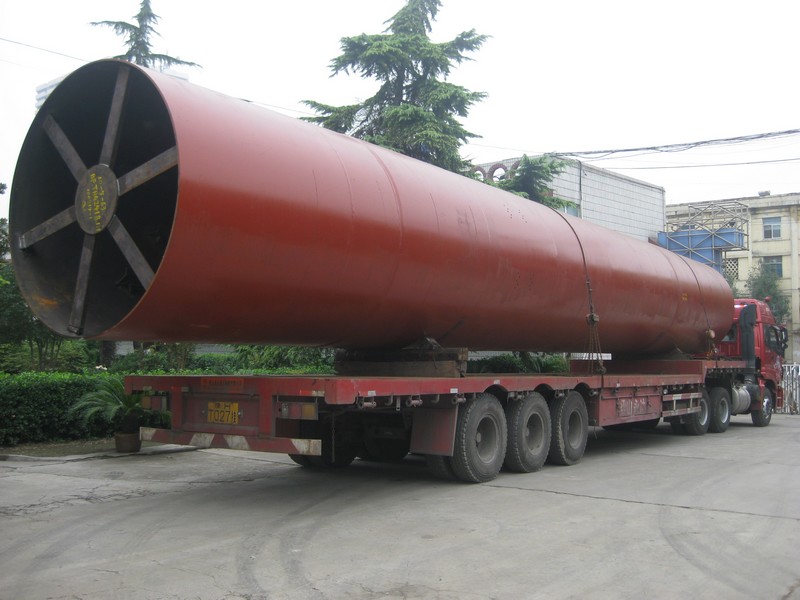

Rotary Dryer
mainly used for drying materials that have certain humidity, such as slag, limestone, coal, beneficial metal ore and so on.
Rotary dryer is mainly used for drying materials that have certain humidity, such as slag, limestone, coal, beneficial metal ore and so on; it’s widely used in building materials, metallurgy, chemical industry, electric power and other industries. The thermal current is divided to downstream and countercurrent, and the heating method is divided to directly heating and indirectly heating.
| Type | Model | Cylinder size | Rotation speed (rpm) |
Motor Power (kw) |
Weight (kg) |
||
| Diameter (mm) | Length (mm) | Inclination (%) | |||||
| Direct heating | HG-10×14 | 1000 | 14000 | 5 | 5.03 | 7.5 | 13136 |
| HG-12×12 | 1200 | 12000 | 5 | 5.03 | 7..5 | 16503 | |
| HG-15×15 | 1500 | 15000 | 5 | 4.02 | 15 | 23126 | |
| HG-18×12 | 1800 | 12000 | 5 | 4.59 | 18.5 | 26100 | |
| HG-18×14 | 1800 | 14000 | 5 | 4.59 | 18.5 | 28263 | |
| HG-20×12 | 2000 | 12000 | 5 | 4.59 | 18. 5 | 29352 | |
| HG-20×14 | 2000 | 14000 | 5 | 4.59 | 18.5 | 31688 | |
| HG-22×14 | 2200 | 14000 | 5 | 5.62 | 22 | 37130 | |
| HG-24×14 | 2400 | 14000 | 4 | 3.6 | 30 | 50819 | |
| HG-28×18 | 2800 | 18000 | 4 | 4.2 | 45 | 84332 | |
| HG-30×20 | 3000 | 20000 | 4 | 3.9 | 55 | 105861 | |
| HG-32×25 | 3200 | 25000 | 3.5 | 3.4 | 75 | 141627 | |
| HG-3.6×24 | 3600 | 24000 | 3.5 | 3.3 | 110 | 188627 | |
| Indirect heating | JHG-18×16 | 1800 | 16000 | 4 | 3.8 | 22 | 43912 |
| JHG-22×27 | 2200 | 27000 | 4 | 4.58 | 37 | 79263 | |
| JHG-24×18 | 2400 | 18000 | 4 | 3.12 | 37 | 68735 | |
