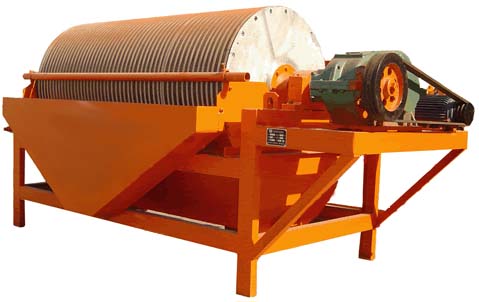

Wet Type Magnetic Separator

Wet Type Magnetic Separator

The Magnetic Separator can separate the raw materials with different magnetic rigidities. It works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. They are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency. The Magnetic Separators are available in cyclic design with process vessel diameters smaller than 3mm.
Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, limonite, and tantalum—niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephrite. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix. It possesses the following advantages: short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, fine beneficiating results, simple structure and easy to maintain.


Model	Drum size		Capacity (t/h)	Revolution (rpm)	Motor power (KW)	Weight (Kg)
	Diameter (mm)	Length (mm)
CTB609	600	900	10~20	40	1.1	1052
CTB612	600	1200	16~29	40	1.5	1321
CTB618	600	1800	18~35	40	1.5	1655
CTB712	700	1200	12~30	35	2.2	1682
CTB715	700	1500	13~36	35	2.2	1806
CTB718	700	1800	20~45	35	2.2	1992
CTB918	900	1800	28~60	27	4	3162
CTB924	900	2400	38~80	27	4	3887
CTB930	900	3000	45~95	27	5.5	4235
CTB1018	1050	1800	36~72	22	4	3801
CTB1021	1050	2100	45~85	22	5.5	4165
CTB1024	1050	2400	52~100	22	5.5	4319
CTB1030	1050	3000	64~125	22	7.5	4976
CTB1218	1200	1800	55~95	19	7.5	5263
CTB1224	1200	2400	65~110	19	7.5	5927
CTB1230	1200	3000	85~120	19	7.5	6325
CTB1530	1500	3000	95~160	16	11	8665
CTB1540	1500	4000	120~190	16	11	9871
