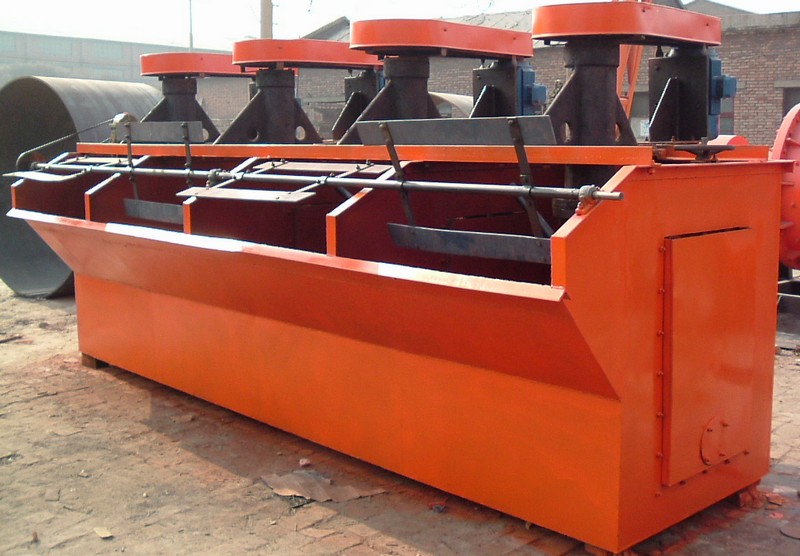

Flotation Machine

This equipment is the main equipment in mineral ore benefication plant, for rough selecting, selecting, scavenging, reversing and other mineral dressing work, and the mechanical mix flotation machine is divided to XJ (A type), SF type, JJF type and so on; it’s widely used in metal nonmetal, rare metal and other industries.

Type	Model	Effective Volume (m³)	Capacity (m³/min)	Main axle		Scraper		Dimensions （L×W×H) (mm)	Weight per cell (kg)
				Power (kw)	Rotation speed (r/min)	Rotation speed (r/min)	Power (kw)
XJ Type	XJ-0.35	0.35	0.18~0.4	1.5	483	17.5	0.55	700×700×700	460
	XJ-0.62	0.62	0.3~0.9	3	400	16	1.1	900×820×850	980
	XJ-1.1	1	0.6~1.6	5.5	330	16	1.1	1100×1100×1000	1390
	XJ-2.8	2.8	1.5~3.5	11	280	16	1.1	1750×1600×1100	2430
	XJ-5.8	5.8	5.0~7.0	22	240	16	1.5	2200×2200×2200	3533
SF Type	SF-1.2	1.2	0.6~1.6	5.5	330	16	1.1	1100×1100×1100	1373
	SF-2.8	2.8	1.5~3.5	11	268	16	1.1	1750×1600×1150	2638
	SF-4	4	2.0~4.0	15	220	16	1.5	1850×2050×1200	2583
	SF-8	8	4.0~8.0	30	191	16	1.5	2200×2900×1700	4129
	SF-10	10	5.0~10	30	191	16	1.5	2200×2900×1400	4486
	SF-20	20	5.0~20	30×2	191	16	1.5	2850×3800×2000	9828
JJF Type	JJF-3	3	1.0~3.0	11	360	16	1.5	1700×1600×1150	2100
	JJF-4	4	2.0~4.0	11	305	16	1.5	1600×2150×1250	2350
	JJF-8	8	4.0~8.0	22	233	16	1.5	2200×2900×1400	4500
	JJF-10	10	5.0~10	22	233	16	1.5	2200×2900×1700	4820
	JJF-20	20	5.0~20	37	180	16	1.5	2850×3800×2000	10500
