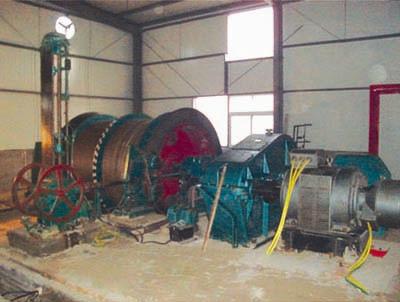

Mine Hoist

This series hoisting machine is mainly used on the ground in coal mine, metal mine and nonmetal mine, for hoisting and lowering materials and staff. This series winch using wire-wound type motor, it’s a non-explosion-proof type winch. Don’t use it underground, in explosive gases or coal dust.It’s national stereotypes product, the main arbor uses integral and part type reels, the reels are forced uniformly and its strength is large; the discoidal brake is advanced rare cylinder type, the action is nimble not stain brake disc, it’s safe and reliable. It has the second brake of hydraulic pressure time delay, which can automatically cancelled at the pithead. There is a radial gear block type hydraulic pressure rope adjusting clutch in double cylinder hoist; the driving part can be to disposed of involute gear reducer, planetary reducer, and parallel axis arc gear reducer. The supporting electronically controlled can use: TKD-A electronically controlled, PLC electronically controlled and frequency conversion retarded electronically controlled, choosing by customs. It has kinds of individual protection and chain protection conform to “ Safety Rules for Coal Mine”.

Type	Reel				Max wire rope static tension		Max wire rope static tension difference		Max hoisting height/ Max transport length
	Quantity	Diameter	Width	Center Distance	Manned	Loading	Manned	Loading	First layer entwining	Second layer entwining	Max Hoisting speed
		mm	mm	mm	KN		KN		m	m	m
JK-2×1.5	1	2000	1500		55	62	55	62	305	650	1025
JK-2×1.8			1800						375	797	1246
2JK-2×1.0	2		1000	1090			40		182	406	652
2JK-2×1.25			1250	1340					242	528	838
JK-2.5×2.0	1	2500	2000		83		83		413	877	1378
JK-2.5×2.3			2300						483	1019	1523
2JK-2.5×1.2	2		1200	1290			65		222	490	790
2JK-2.5×1.5			1500	1590					294	636	1011
JK-3×2.2	1	3000	2200		125	135	125	135	458	966	1513
2JK-3×1.5	2		1500	1590			90		289	624	994
2JK-3×1.8			1800	1890					362	770	1217
