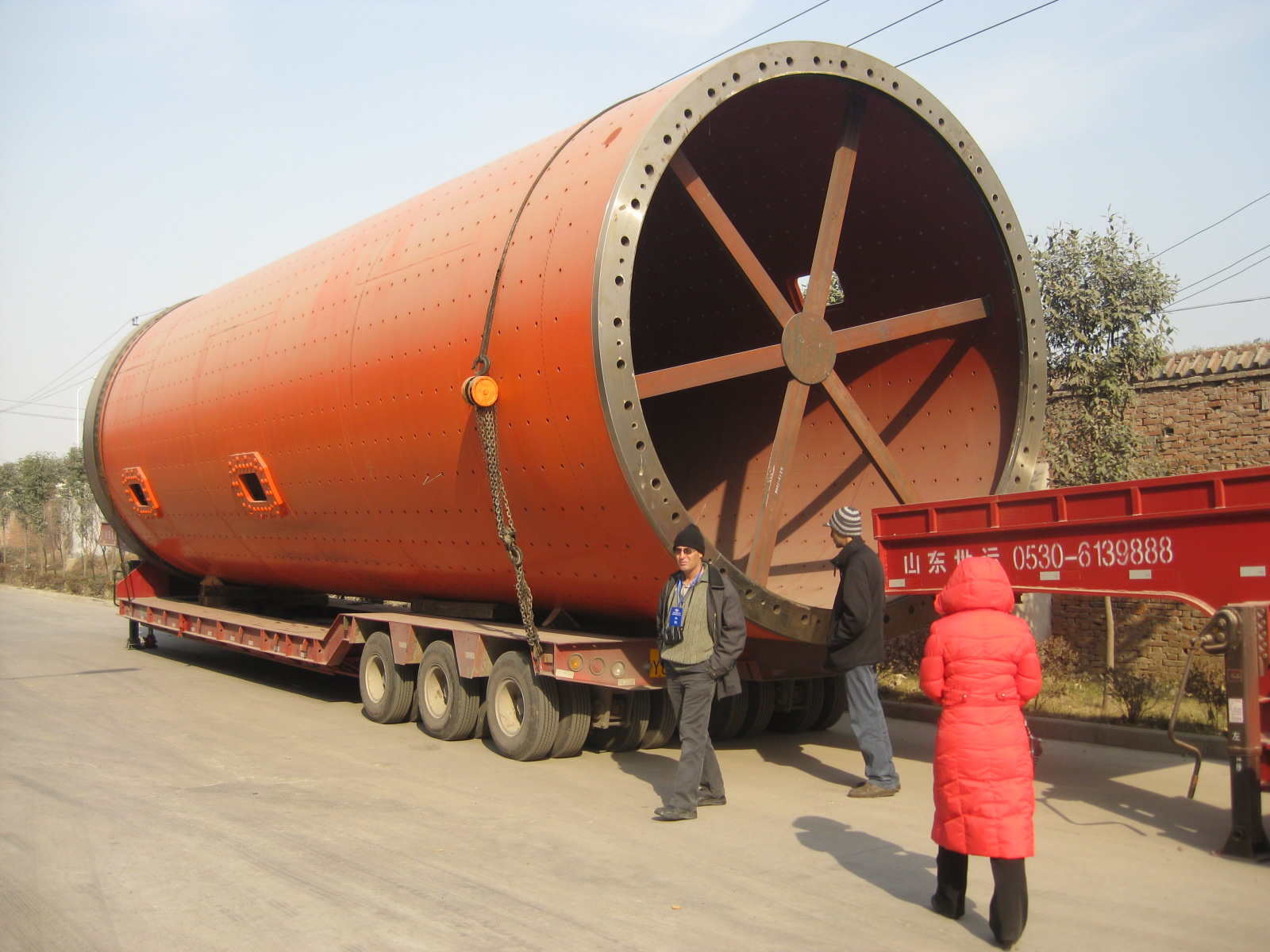

Tube Mill

This equipment is the main equipment for power milling raw materials and chamotte in cement plants, it can be used for open-flow powder milling system and circle-flow powder milling system with powder dressing machine, it can be also used for powder milling medium hardness materials and other materials can be milled in metallurgy, electric power, chemical industry and other industries.


Kind	Type	Cylinder (mm)		Cylinder Rotation speed	Capacity (t/h)		Motor Power (kw)	Weight	Remarks
		Diameter	Length	r/min	Raw	Cement
Tube Mill	M2265	2200	6500	21.95	17-19	12-14	380	48.5
	M2275	2200	7500	21.95	19-21	13-15	380	51.4
	M22110	2200	11000	21.95	20-22	14-16	570	79.5
	M2470	2400	7000	20.4	22-24	14-15	475	68.5
	M24100	2400	10000	20.4	28-30	17-18	630	98.6
	M26130	2600	13000	19.7	37-4	25-30	1000	164.8
	M3090	3000	9000	18.7	36-44	30-35	1000	157.2
	M30110	3000	11000	18.7	55-65	40-47	1250	175
	M32120	3200	12000	17.8	68-75	48-56	1400	210
	M3475	3400	7500	16.9	56-60	44-48	1000	166.7
	M35110	3500	11000	16.5		50-55	2000	141	No main drive
	M38120	3800	12000	16.3		58-60	2500	225.6	No main drive
	M40130	4000	13000	15.46		90-100	2ⅹ1600	376
	M42110	4200	11000	15.75		105-110	2800	254.2	No main drive
Drying Mill	M2270	2200	7000	21.95	15-17		280	46.9
	M2670	2600	7000	19.6	22-25		570	85
	M3290	3200	9000	17.7	48-52		1000	126
	M35100	3500	10000	16.5	70-75		2ⅹ630	186.6
	M46110	4600	11000	15	140-150		2500	272	No main drive
High-fine cement mill	MX2295	2200	9500	21.4		14-15	475	68.2
	MX22110	2200	11000	21.4		15.1-16.1	570	85.6
	MX24110	2400	11000	21.68		20.6-22.7	630	108
	MX24130	2400	13000	19.4		21.6-23.8	800	121
	MX26130	2600	13000	19.7		24.6-27.1	1000	169.8
	MX3090	3000	9000	18.7		26.6-28.5	1000	161
	MX30110	3000	11000	18.7		28.6-32.8	1250	183.5
	MX30130	3000	13000	18.7		33-36	1250	199.5
	MX32120	3200	12000	17.8		31.8-38.2	1400	213
1. The weight does not include motor's, electronic control's and grinding materials' weight. 2. No prior notice will be given for any changes of products. 3. We can make nonstandard design according the customers' requests
