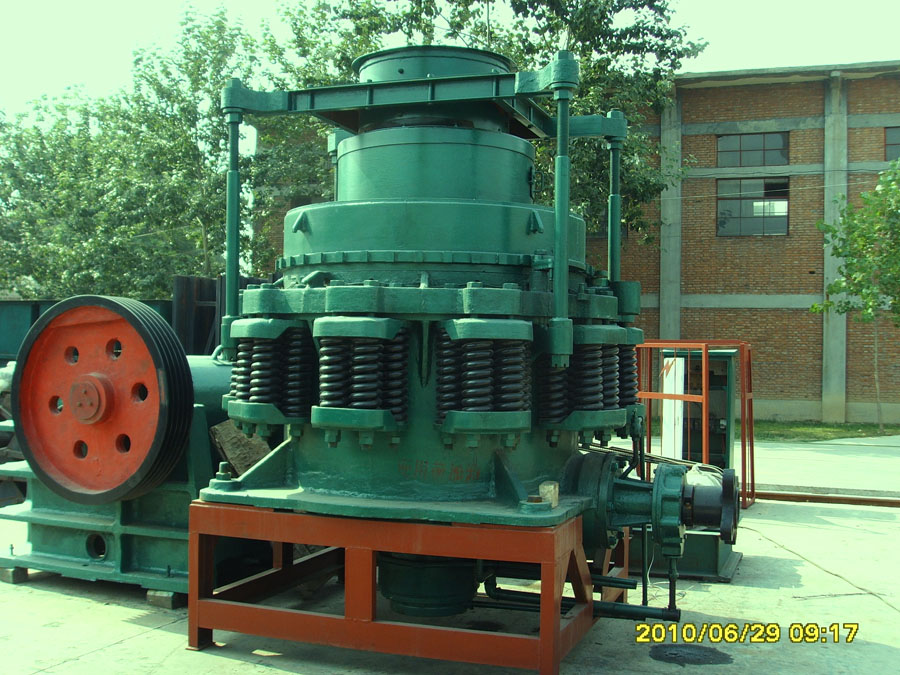

Spring cone crusher

Spring cone crusher is suitable for crushing all kinds of ore and rocks in medium hardness or above mid-hardness. It has reliable structure, high efficiency, easy adjustment, and low consumption, ect. Spring guard system is overload protection unit to make external iron lump pass through the crushing cavity without harm to the machine. The machine use dry oil or water seal unit that can keep stone powder from lubrication oil so that it can reliable operate. The form of crushing cavity is selected by the use of ore. Standard type is suitable for medium crushing, middle type for medium and fine crushing, and short head for fine crushing.

Technical parameters:

Model	Big end diameter Of crushing cone (mm)	Inlet width (mm)	Outlet width (mm)	Output capacity (t/h)	Motor power (KW)	Swing No. of main shaft	Weight (t)
PYB600	600	65	12-25	40	30	356	5
PYD600	600	35	3-13	12-23	30	356	5.5
PYB900	900	115	15-50	50-90	55	333	11.2
PYZ900	900	60	5-20	20-65	55	333	11.2
PYD900	900	50	3-13	15-50	55	333	11.3
PYB1200	1200	145	20-50	110-168	110	300	24.7
PYZ1200	1200	100	8-25	42-135	110	300	25
PYD1200	1200	50	3-15	18-105	110	300	25.3
PYB1750	1750	215	25-50	280-480	160	245	50.3
PYZ1750	1750	185	10-30	115-320	160	245	50.3
PYD1750	1750	85	5-13	75-230	160	245	50.2
PYB2200	2200	300	30-60	59-1000	280-260	220	80
PYZ2200	2200	230	10-30	200-580	280-260	220	80
PYD2200	2200	100	5-15	120-340	280-260	220	81.4
